Mezzanine Floor
A mezzanine floor installed is one of the most cost-efficient and ways to create extra space for your business. Make use of that wasted vertical space with a bespoke mezzanine floor. In warehouses or industrial environments where ceilings are typically high, having a mezzanine floor installed is the perfect way to utilise existing space to create more room for your stock and operations.
We can Supply, Deliver and Install a Mezzanine Floor to your site dimensions using all new material, produced under quality standards ISO 9001,14001, OHSAS18001 and BS EN1090 (CE marked).
Please Note: Price displayed is example pricing for the mezzanine build shown in the images (dimensions in specifications below), many more sizes and bespoke builds are available, contact us for a quote for your mezzanine requirements.
**Contact Us for a Quote**
Download SpecificationsRunning out of space, buying a building that isnt big enough?
- Saves having to move to bigger premises
- Saves having to get somewhere additional
- Allows you to bring outside storage/service in
- Expanding, need space for additional production
- Expanding, need space for additional offices
- Expanding, need space for additional storage
- Contracting, combining 2 or more sites.
- Takeover, implant.
- Trying to increase profit, save money, or both.

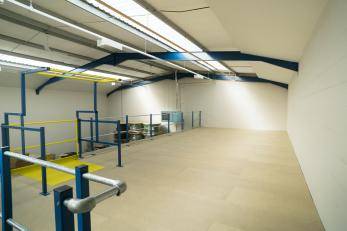

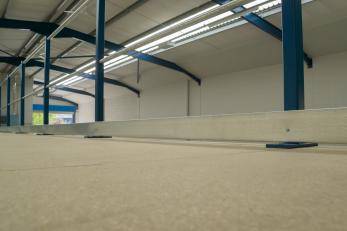

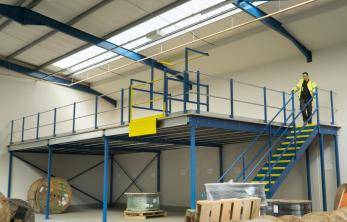

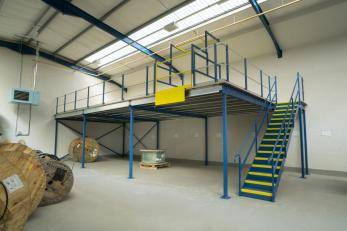

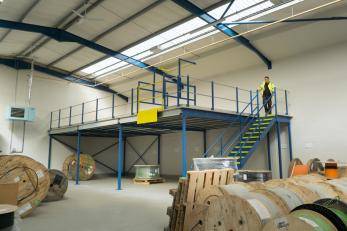

Priced Example
To supply, deliver and install mezzanine floor to your site dimensions using all new material, produced under quality standards ISO 9001,14001, OHSAS18001 and BS EN1090 (CE marked).
Length: 12.2m
Width: 5.5m
Floor to floor level (FFL) : 3m
Column Grid: 4000mm on length, 5500mm on width.
Loading: 4.8kn/m2 deflection L/200 storage floor.
Decking: 38mm P6 particle board natural finish
Staircases: Single utility staircase
Pallet gate: Standard up and over safety gate with chequer steel wearplate.
Handrail: Standard industrial handrail, knee rail and steel kickplate, 1100mm high, to two edges.
Fire protection: Not required if total mezzanine area is less than 50% of the containing area, not enclosed and the floor will not be a permanent place of work.
Please Note: Provision of any lighting HVAC or fire detection systems is currently excluded from our specification and quotation.
Mezzanine floors should be approved by both Building Regulations and the fire officer and you can make this application yourself or we can do it for you for an additional fee. The approval should be in place prior to manufacture and installation or we can proceed prior to approval on your instruction and letter of indemnity.
In support of any application you do make, we will provide copies of all the drawings and calculations which prove our design. The Floor will be signed to show the safe working loads proven by these calculations.
Price includes installation + delivery to England, Wales, Scotland up to Edinburgh/Glasgow, also includes pre-manufacture site survey and assumes there will be a Fork Lift Truck (FLT) on site for unloading.
