Britgas Gas Bottle Storage Cages Warehouse Ladder

Britgas Gas Bottle Storage Cages

These sturdy gas bottle storage cages are an excellent solution to your Gas Cylinder or Propane Bottle storage needs . The Britgas range of Gas bottle storage cages will accommodate a quantity of 9 small cylinders up to 25 large cylinders .

The Britgas bottle storage cages are manufactured from 30mm steel section with 50mm square 3mm mesh infill with fixing points for bolting to the floor. The gas bottle storage cages are supplied Fully Assembled. Flat pack version available – please call for details.

All Britgas bottle cages are fitted with a hinged door fastened with a hasp and staple and safety sign.

All units are attractively finished in Black , Blue, Red, or Yellow to suit your colour requirements.

Optional extras include a fitted Base or Shelf ( see optional extras menu )

Download Specifications

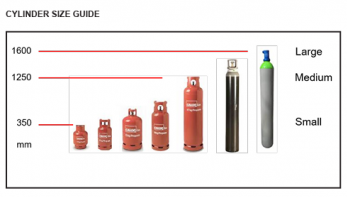

No of Cylinders - Size

Please Select

Optional Extras Show Optional Extras

Gas Bottle Cage Shelf (£65.00)

Gas Bottle Cage Base (£65.00)

Bespoke Colour

Please Select

Quantity - +

Code	WGC05
No of Cylinders - Size	3 Small - 900x1000x500
Overall Dimensions HxWxD mm	900x1000x500
Weight Kg	50

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC05	3 Small - 900x1000x500	900x1000x500	50

Code	WGC15
No of Cylinders - Size	6 Small - 1700x1000x500
Overall Dimensions HxWxD mm	1700x1000x500
Weight Kg	80

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC15	6 Small - 1700x1000x500	1700x1000x500	80

Code	WGC25
No of Cylinders - Size	9 Small- 1200x1200x1200
Overall Dimensions HxWxD mm	1200x1200x1200
Weight Kg	60

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC25	9 Small- 1200x1200x1200	1200x1200x1200	60

Code	WGC20
No of Cylinders - Size	4 Large- 1800x900x900
Overall Dimensions HxWxD mm	1800x900x900
Weight Kg	80

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC20	4 Large- 1800x900x900	1800x900x900	80

Code	WGC30
No of Cylinders - Size	9 Large- - 1800x1200x1200
Overall Dimensions HxWxD mm	1800x1200x1200
Weight Kg	90

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC30	9 Large- - 1800x1200x1200	1800x1200x1200	90

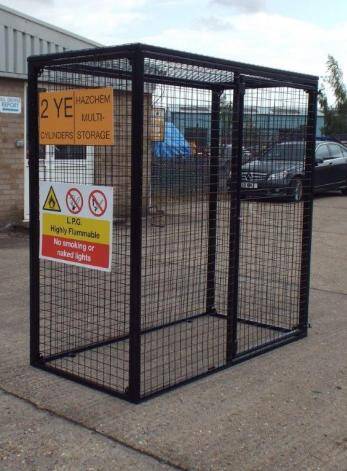

Code	WGC35
No of Cylinders - Size	10 Large- - 1800x1800x900
Overall Dimensions HxWxD mm	1800x1800x900
Weight Kg	100

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC35	10 Large- - 1800x1800x900	1800x1800x900	100

Code	WGC40
No of Cylinders - Size	15 Large- - 1800x1800x1200
Overall Dimensions HxWxD mm	1800x1800x1200
Weight Kg	110

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC40	15 Large- - 1800x1800x1200	1800x1800x1200	110

Code	WGC45
No of Cylinders - Size	20 Large- - 1800x1800x1800
Overall Dimensions HxWxD mm	1800x1800x1800
Weight Kg	120

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC45	20 Large- - 1800x1800x1800	1800x1800x1800	120

Code	WGC50
No of Cylinders - Size	25 Large- - 2000x2000x2000
Overall Dimensions HxWxD mm	2000x2000x2000
Weight Kg	140

Code	No of Cylinders - Size	Overall Dimensions HxWxD mm	Weight Kg
WGC50	25 Large- - 2000x2000x2000	2000x2000x2000	140

PRICE FROM£335.40

Prices include VAT and Delivery. Surcharges May Apply.

ADD TO TROLLEY

specification warranty download

Britgas Gas Bottle Cage

30mm steel section
50mm square 3mm mesh infill
fixing points for bolting to the floor.

The gas bottle storage cages are supplied Fully Assembled. Flat pack version available - please call for details.

12 months workmanship

Download Specification
